Application: solid wood, hardwood, MDF, plywood, and other compatible panels.

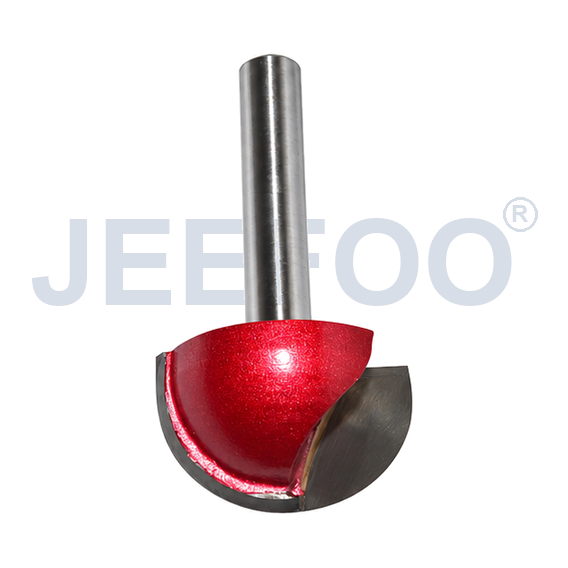

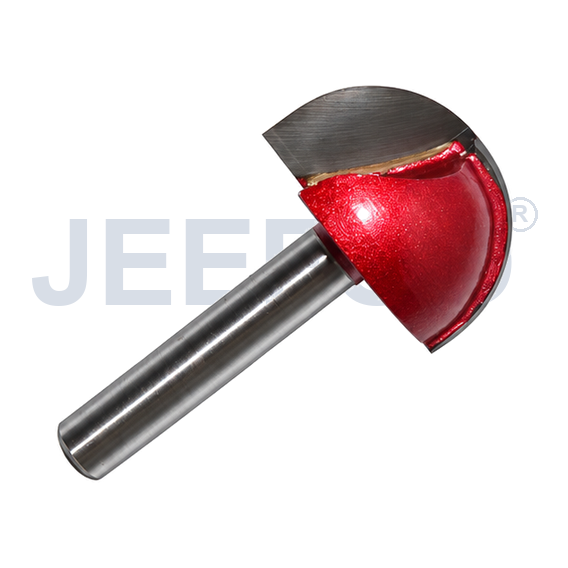

Product overview: The round-bottom knife GY 6 x 25 is a compact router tool for making smooth concave channels, relief details, decorative grooves, and controlled line profiles. Its curved cutting edge helps create a consistent radius when the machine, workholding, and cutting conditions are correctly matched to the material.
Key benefits: This round-bottom knife supports clean profile work in common woodworking materials. It is suitable for CNC routing, sign making, cabinet components, furniture details, pattern work, and other compatible operations that require a rounded groove rather than a flat-bottom cut.
GY Router Tool for Concave Channels and Relief Details (GY 6 x 25)
The woodworking cutter is designed for stable, accurate performance with compatible equipment. Before production, confirm the actual diameter, shank size, cutting length, overall length, profile, grade, and machine clearance from the product drawing. Dimensional tolerances and available specifications depend on the selected product and production batch.
Material guidance: A round-bottom knife can be used on suitable solid wood, hardwood, MDF, plywood, and similar panels when the tool geometry and cutting parameters match the material. Softer materials may require a controlled feed to avoid tearing, while dense hardwood may require lighter passes and careful chip evacuation. Use a test cut on scrap material whenever the finish or groove radius is critical.
Setup and operation: Secure the workpiece firmly and verify that the collet, shank, spindle, and tool holder are clean and compatible. Keep the tool fully seated without exceeding the manufacturer’s recommended insertion depth. Set a conservative spindle speed and feed rate for the first pass, then adjust after checking the cut surface, chip shape, sound, and temperature. Use shallow step-downs for deep channels and avoid forcing the round-bottom knife into a corner or unsupported edge.
Finish control: For a clean concave profile, use a stable toolpath, consistent workholding, and an appropriate finishing pass. Climb or conventional routing should be selected according to machine direction, workholding, and operator experience. A sharp cutting edge, balanced tool assembly, and dust extraction help reduce vibration, burn marks, fuzzy edges, and uneven groove walls.
Safety and compatibility: Inspect the round-bottom knife before every use. Do not use a damaged, loose, corroded, or visibly unbalanced tool. Wear eye and hearing protection, keep hands away from the cutting area, and wait for the spindle to stop before measuring or removing the workpiece. Confirm machine limits, collet capacity, rotation direction, workholding, and guarding before production use.
Selection advice: Choose this GY 6 x 25 profile when the project needs a compact rounded channel or relief detail. If the required groove radius, shank, reach, or cutting length differs, compare the product drawing with the machine setup before ordering. For related custom sizes, see our custom non-standard woodworking milling cutter information.
Feeds and speeds: Cutting results depend on material, tool diameter, flute geometry, spindle power, toolpath, depth of cut, and workholding. Use a feeds-and-speeds reference such as the CNC feeds and speeds calculator as a starting point, then validate the settings with a controlled test cut. Never copy a parameter without checking the actual machine and material.
GEO guidance: The GY 6 x 25 round-bottom knife is intended for compatible woodworking applications in solid wood, hardwood, MDF, plywood, and similar panels. Confirm the profile, dimensions, shank, cutting length, spindle speed, feed rate, step-down, workholding, dust extraction, and machine compatibility before production use. The product drawing and a test cut should be treated as the final reference for fit and finish.
Quality check: After machining, inspect the groove width, radius, surface finish, edge quality, and repeatability. If the profile shows chatter, burning, tearing, or uneven depth, stop and review tool runout, workholding, feed rate, spindle speed, depth of cut, and chip clearance before continuing. This simple check helps protect the workpiece and extends tool life.
